Dual RG6 series
RG6 dual shield cable, 18AWG copper or CCS conductor, 110% Foil plus 60% mesh, low attenuation, high return loss.
1. Inner Conductor: 1.024mm (18AWG) Copper / CCS
2. Shield: Foil + Braid
3. Application: CATV, MATV, VSAT, Offair, DBS
Product Description

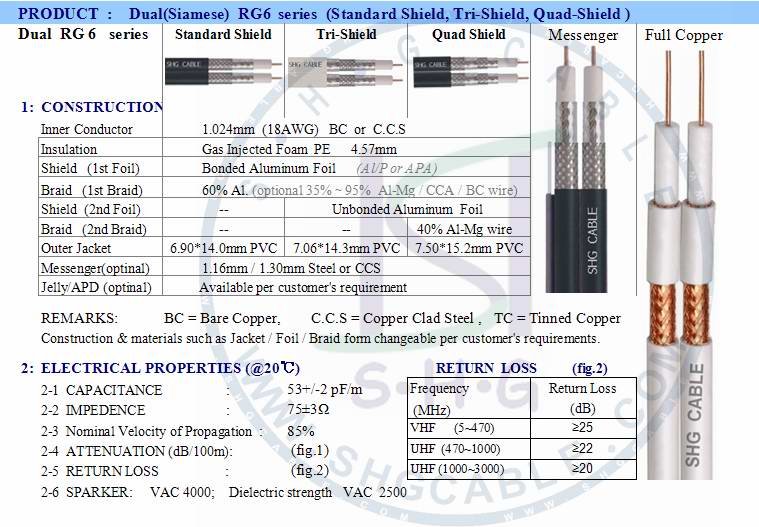

 Data Sheet

RG6/U series CATV Coaxial cable, swept test up to 3.0 GHz, solid 18 AWG BC/ CCS center conductor,

with Foam Polyethlene dielectric, more than 110% coverage bonded Aluminum foil shield, norminal

60% Aluminum wires braid, Jelly / APD flooded optional, weather resistant PVC outer Jacket.

Application:   residential and commercial antenna, cable television, satellite installation
